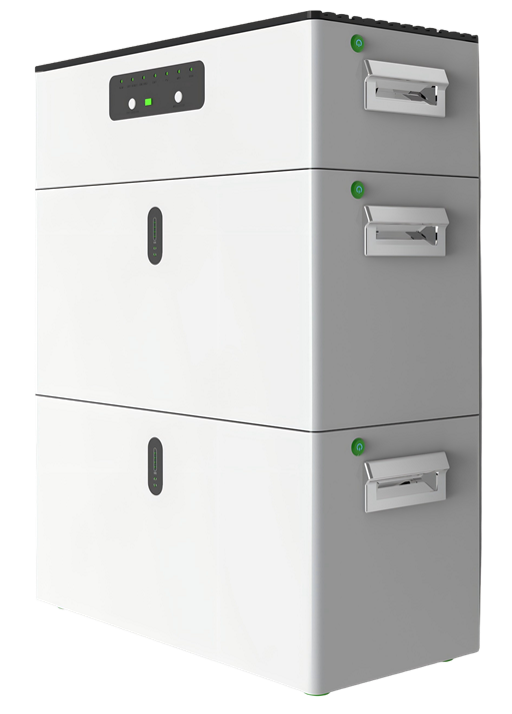

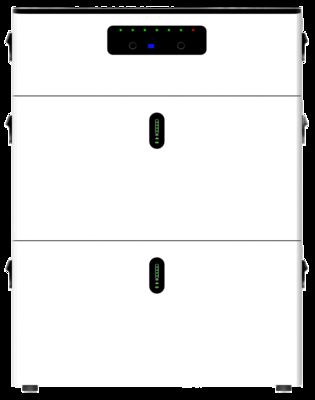

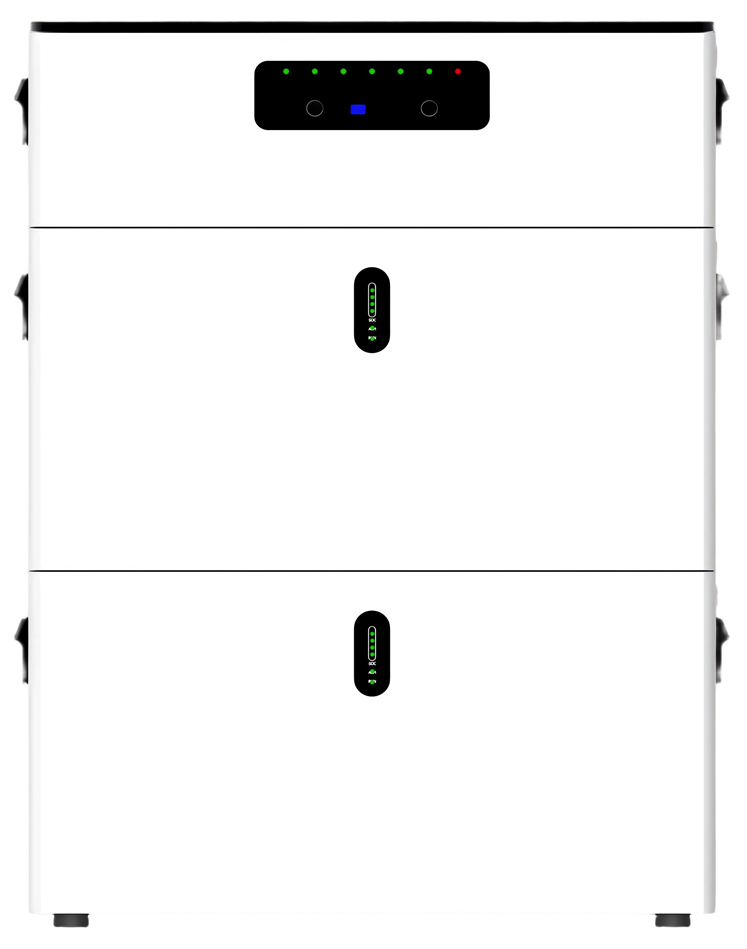

2400W PV Input Balcony Energy Storage System

Τόπος καταγωγής ΚΙΝΑ
Μάρκα Gtech
Πιστοποίηση UN38.3, MSDS, CE
Ποσότητα παραγγελίας min 1 PCS
Τιμή negotiable
Συσκευασία λεπτομέρειες Ξύλινη θήκη
Χρόνος παράδοσης 20 εργάσιμες ημέρες
Όροι πληρωμής T/t
Δυνατότητα προσφοράς 10000pcs/μήνα

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

Whatsapp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.

x
Λεπτομέρειες
Εγγύηση 5 χρόνια Τοποθετήστε τον τρόπο Τύπος πύργων
Τηλεχειριστήριο Υποστήριξη Χρώμα Προσαρμοσμένος
Υπηρεσία OEM Υποστήριξη, δωρεάν Μπαταρία Πακέτο μπαταρίας LifePo4
Επισημαίνω

2400W balcony solar storage

,

PV input energy storage system

,

G Tech UPS solar inverter

Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Balcony Energy Storage System


Product Description

This balcony energy storage system is tailor - made for home balcony scenarios. It integrates efficient solar energy conversion, intelligent electric energy storage, and stable power supply. By making full use of the solar energy received in the balcony space, it converts solar energy into electricity and stores it, providing reliable support for daily household electricity consumption. With this system, you can have an exclusive green energy "supply station" right on your balcony.

Product Parameters

Category Parameter Item Specific Parameter
PV Input Maximum Input Power 2400W

Rated Input Voltage 12 - 60V

MPPT Start - up Voltage 18V

Number of MPPT Paths 2

Maximum Current per MPPT Path 34A

Maximum Short - Circuit Current (ISC) 50A
Grid - connected AC Input/Output Rated Output Power 1600VA

Maximum Input/Output Power 1600VA

AC Output Voltage 230V

AC Output Voltage Range 180 - 264V

AC Output Frequency 50/60Hz

Maximum Output Current 6.9A

Power Factor 1 (Adjustable range: - 0.8 to + 0.8)

Total Harmonic Distortion (THDi) < 3% (at rated power)

Grid Type L + N + PE
Off - Grid Maximum Output Power 1600VA

Peak Output Power 2400VA (10S)

AC Output Voltage 230V

AC Output Voltage Range 180 - 264V

AC Output Frequency 50/60Hz

Maximum Output Current 6.9A

Power Factor 1 (Adjustable range: - 0.8 to + 0.8)

Total Harmonic Distortion (THDi) < 3% (at rated power)

Grid Type L + N + PE
Other Core Parameters Maximum Efficiency 97%

MPPT Tracking Efficiency 99%

Battery Type LiFePO₄

Battery Voltage Range 40 - 60V

Maximum Charging Current 50A

Maximum Discharging Current 35A

Communication Method CAN, WIFI/Bluetooth

Charging Curve Equalization

External Temperature Sensor Optional

Heat Dissipation Method Natural Cooling

Isolation Characteristic HF Transformer

Control Method Cloud Platform/APP

Supported Battery Parallel Operation 4 PCS

Size Customized (Height × Width × Depth, subject to actual product)

Weight Customized (subject to actual product)

Operating Temperature Range -20 - 65℃

Storage Environment Temperature -20 - 65℃

DC Connector Type MC4


Applications

  • Daily Household Electricity Use: It can meet the daily electricity demands of household lighting, TVs, computers, small home appliances, etc., especially suitable for powering electrical devices near the balcony area.
  • Emergency Power Supply: In case of sudden power outages and other emergencies, it can supply stable power to key household devices (such as refrigerators, communication devices, etc.), ensuring basic living and communication needs.
  • Time - of - use Electricity: It can be charged during off - peak electricity price periods and discharged during peak electricity price periods, helping families save electricity costs.
  • Solar Energy Utilization: It can fully collect solar energy on the balcony, convert it into electrical energy for storage, practice the concept of green energy conservation, and reduce dependence on the traditional power grid.

Features

  • High - efficiency Energy Conversion: With a high MPPT tracking efficiency (99%) and maximum system efficiency (97%), it ensures more efficient conversion and utilization of solar energy into electricity, reducing energy loss.
  • Stable Power Output: It can provide stable voltage, frequency, and current in both grid - connected and off - grid modes. With low total harmonic distortion and high power quality, it protects electrical equipment.
  • Intelligent Battery Management: Using LiFePO₄ batteries, combined with an intelligent charging curve and communication control, it can monitor battery status in real time, achieve balanced charging, extend battery life, and support parallel connection of multiple batteries to flexibly expand capacity.
  • Flexible Adaptation and Control: It supports multiple communication methods and can be controlled remotely via a cloud platform or APP. An external temperature sensor is optional, making it suitable for different environments. The heat dissipation method is natural cooling, so no additional heat dissipation equipment is needed, and installation is simpler.
  • Safe and Reliable: It has good isolation characteristics and can adapt to a wide temperature range, ensuring the safe operation of the system in various environments.


Services Our Company Can Provide

  • Customization Service: We can customize the size, battery capacity, etc. of the energy storage system according to the size of the customer's balcony space and electricity demand to meet the customer's actual situation.
  • After - sales Guarantee:
    • Product Warranty: We provide a certain period of product warranty service. During the warranty period, free maintenance or replacement of parts is provided for non - human damage problems.
    • Operation and Maintenance Service: We regularly provide customers with system operation and maintenance guidance. On - site operation and maintenance inspections can be carried out according to customer needs to ensure the long - term stable operation of the system.
    • Technical Support: We provide a 7×24 - hour technical support hotline to answer customers' questions encountered in the use of the system in a timely manner and solve faults through remote assistance.
